这两天在给Samsara Aquarius的各个Service写分页的时候,设计了一个抽象层,想把一些公共的分页逻辑放在这个trait中,但是被Slick的类型系统折磨了一点时间。。今天粗略看了一下相关的源码,结合这几天遇到的问题,总结一下。因此就把这篇文章作为Prologue吧。。。(Slick的版本为3.1.1)

蛋疼的类型参数

在Slick里面,分页可以通过droptake函数实现。query.drop(offset).take(n)对应的SQL为LIMIT n, offset。因此在一开始,我设计了一个trait作为分页逻辑的抽象:

1
2
3
4
5
6
7
trait PageDao {
def page(): Future[Int]
def fetchWithPage(offset: Int): Future[Seq[_]]
}

其中,page函数用于获取总页数,fetchWithPage函数实现分页查询逻辑。

在Slick里,db操作通过db.run(DBIOAction)进行,而每个Query可以通过result函数隐式转换成DBIOAction,因此我们需要给参数中加上Query,以便我们的Service层可以传递不同的Query:

1
2
3
4
5
6
7
trait PageDao {
def page(query: slick.lifted.Query[_, _, Seq]): Future[Int]
def fetchWithPage(query: slick.lifted.Query[_, _, Seq], offset: Int): Future[Seq[_]]
}

Query[+E, U, C[_]]是一个接受3个类型参数的type constructor,这为后边的蛋疼埋下伏笔。。

好了,接下来,由于我们需要在抽象层进行db操作,因此必须获取db对象,这里我选择继承HasDatabaseConfigProvider[JdbcProfile]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
trait WithPageProvider extends HasDatabaseConfigProvider[JdbcProfile] with PageDao {
import driver.api._
val withQueryByPage =
(query: slick.lifted.Query[_, _, _], offset: Int) =>
query.drop(offset).take(LIMIT_PAGE)
def page(query: slick.lifted.Query[_, _, _]): Future[Int] = {
db.run(query.length.result) map { all =>
val p = all % LIMIT_PAGE == 0
if (p) all / LIMIT_PAGE
else (all / LIMIT_PAGE) + 1
} recover {
case ex: Exception => 0
}
}
def fetchWithPage(query: slick.lifted.Query[_, _, _], offset: Int): Future[Seq[_]] = {
db.run(withQueryByPage(query, offset).result)
}
}

嗯。。逻辑很快写好了,一切似乎都是OK的,下面在业务层中调用一下:

1
2
def fetchWithPage(offset: Int): Future[Seq[(Category, Int)]] =
super.fetchWithPage(categoriesCompiled, offset)

很快,远方就传来了IDE提示GG的声音。。。提示:Expression of type Future[Seq[_]] doesn't conform to expected type Future[Seq[(Category, Int)]]

嗯。。。看来是必须具化Seq的type parameter了。。那么就给trait里的fetchWithPage加个type parameter吧。。下面就陷入了苦逼的Slick类型系统初探过程——Slick在runresult的过程中,如何从一个原始的Query[+E, U, C[_]]转化为最终的Future[Seq[R]]?也就是说Query的这几个type parameters该取什么类型?想解决这个问题,只能看Slick的源码了。。首先从run函数出发,看看Future是怎么产生的:

1
2
/** Run an Action asynchronously and return the result as a Future. */
final def run[R](a: DBIOAction[R, NoStream, Nothing]): Future[R] = runInternal(a, false)

可以看到,最后返回Future的类型参数是DBIOAction[R, NoStream, Nothing]的第一个类型参数R。接着我们看一下DBIOAction的定义:

1
sealed trait DBIOAction[+R, +S <: NoStream, -E <: Effect] extends Dumpable

嗯,看到这里,似乎明白了什么。。然后再看一下Query的定义:

1
2
3
sealed trait QueryBase[T] extends Rep[T]
sealed abstract class Query[+E, U, C[_]] extends QueryBase[C[U]]

可以看到Query[+E, U, C[_]]继承了QueryBase[C[U]],然而注释里完全没有这三个type parameters的含义,所以就瞎猜。。注释里提到计算结果代表一个集合类型,如Rep[Seq[T]],而QueryBase[T]又继承了Rep[T],所以很容易想到Query第三个类型参数为Seq。然而一开始没有看到后边的[C[U]],又因为DBIOAction中返回类型为第一个类型参数R,因此就错误地把这里的返回类型想成了第一个类型参数E(还是协变的,很迷惑人)。于是把fetchWithPage改成了这样:

1
def fetchWithPage[R](query: slick.lifted.Query[R, _, Seq], offset: Int): Future[Seq[R]]

仍然在报错,这次成了Expression of type Future[Seq[Any]] doesn't conform to expected type Future[Seq[R]]

这时候提示就比较明显了,既然第一个类型参数已经限定为R,而返回值还为Future[Seq[Any]],那么很容易就会联想到当前为_的类型参数有猫腻,即Query[+E, U, C[_]]中的U。这时候再看到后边继承的QueryBase[C[U]],一切都一目了然了。这里的QueryBase[C[U]]是一个higher-kinded type,既然我们将C设为Seq,那么很容易想到C[U]其实就是对应着Seq[Result],那么我们的R参数应该放在Query的第二个类型参数U上。改一下发现,一切都正常了:

1
2
3
def fetchWithPage[R](query: slick.lifted.Query[_, R, Seq], offset: Int): Future[Seq[R]] = {
db.run(withQueryByPage(query, offset).result)
}

寻根溯源

问题解决了,但Query[+E, U, C[_]]里那个+E实在是很迷惑人,于是就继续探究了探究它到底是什么玩意。注释里没写,那就从Query的实现中找吧。。在TableQuery的定义中有:

1
2
3
4
5
6
7
8
9
10
class TableQuery[E <: AbstractTable[_]](cons: Tag => E) extends Query[E, E#TableElementType, Seq]
/** The driver-independent superclass of all table row objects.*/
// @tparam T Row type for this table.
abstract class AbstractTable[T](val tableTag: Tag, val schemaName: Option[String], val tableName: String) extends Rep[T] {
type TableElementType
// ...
}

E需要是AbstractTable[_]的子类,而我们在定义表的映射的时候都是继承了Table[_]类,因此可以确定E就是查询的类型所对应的Table类(比如ArticleTable)。

另外一个值的探究的地方就是那个result函数是如何将一个Query转化为DBIOAction的。蛋疼的地方在于这个转换是隐式的(相当于实现了Typeclass Pattern),因此追踪如何转换的比较困难。好在写代码的时候发现,如果不导入driver.api._的话,就会找不到result函数,因此可以从这里入手。跳转到api的源码:

1
val api: API = new API {}

那么秘密应该就藏在JdbcProfile#API类里了:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
trait API extends LowPriorityAPI with super.API with ImplicitColumnTypes {
type FastPath[T] = JdbcFastPath[T]
type SimpleDBIO[+R] = SimpleJdbcAction[R]
val SimpleDBIO = SimpleJdbcAction
implicit def jdbcFastPathExtensionMethods[T, P](mp: MappedProjection[T, P]) = new JdbcFastPathExtensionMethods[T, P](mp)
implicit def queryDeleteActionExtensionMethods[C[_]](q: Query[_ <: RelationalProfile#Table[_], _, C]): DeleteActionExtensionMethods =
createDeleteActionExtensionMethods(deleteCompiler.run(q.toNode).tree, ())
implicit def runnableCompiledDeleteActionExtensionMethods[RU, C[_]](c: RunnableCompiled[_ <: Query[_, _, C], C[RU]]): DeleteActionExtensionMethods =
createDeleteActionExtensionMethods(c.compiledDelete, c.param)
implicit def runnableCompiledUpdateActionExtensionMethods[RU, C[_]](c: RunnableCompiled[_ <: Query[_, _, C], C[RU]]): UpdateActionExtensionMethods[RU] =
createUpdateActionExtensionMethods(c.compiledUpdate, c.param)
implicit def jdbcActionExtensionMethods[E <: Effect, R, S <: NoStream](a: DBIOAction[R, S, E]): JdbcActionExtensionMethods[E, R, S] =
new JdbcActionExtensionMethods[E, R, S](a)
implicit def actionBasedSQLInterpolation(s: StringContext) = new ActionBasedSQLInterpolation(s)
}

这里面存在这样的继承关系(简化过后的):JdbcProfile#API <:< RelationalProfile#API <:< BasicProfile#API

再看RelationalProfile中的API类:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
trait API extends super.API with ImplicitColumnTypes {
type Table[T] = driver.Table[T]
type Sequence[T] = driver.Sequence[T]
val Sequence = driver.Sequence
type ColumnType[T] = driver.ColumnType[T]
type BaseColumnType[T] = driver.BaseColumnType[T]
val MappedColumnType = driver.MappedColumnType
@deprecated("Use an explicit conversion to an Option column with `.?`", "3.0")
implicit def columnToOptionColumn[T : BaseTypedType](c: Rep[T]): Rep[Option[T]] = c.?
implicit def valueToConstColumn[T : TypedType](v: T) = new LiteralColumn[T](v)
implicit def columnToOrdered[T : TypedType](c: Rep[T]): ColumnOrdered[T] = ColumnOrdered[T](c, Ordering())
implicit def tableQueryToTableQueryExtensionMethods[T <: RelationalProfile#Table[_], U](q: Query[T, U, Seq] with TableQuery[T]) =
new TableQueryExtensionMethods[T, U](q)
implicit def streamableCompiledInsertActionExtensionMethods[EU](c: StreamableCompiled[_, _, EU]): InsertActionExtensionMethods[EU] = createInsertActionExtensionMethods[EU](c.compiledInsert.asInstanceOf[CompiledInsert])
implicit def queryInsertActionExtensionMethods[U, C[_]](q: Query[_, U, C]) = createInsertActionExtensionMethods[U](compileInsert(q.toNode))
implicit def schemaActionExtensionMethods(sd: SchemaDescription): SchemaActionExtensionMethods = createSchemaActionExtensionMethods(sd)
}

再看BasicProfile中的API类:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
trait API extends Aliases with ExtensionMethodConversions {
type Database = Backend#Database
val Database = backend.Database
type Session = Backend#Session
type SlickException = slick.SlickException
implicit val slickDriver: driver.type = driver
// Work-around for SI-3346
@inline implicit final def anyToToShapedValue[T](value: T) = new ToShapedValue[T](value)
implicit def repQueryActionExtensionMethods[U](rep: Rep[U]): QueryActionExtensionMethods[U, NoStream] =
createQueryActionExtensionMethods[U, NoStream](queryCompiler.run(rep.toNode).tree, ())
implicit def streamableQueryActionExtensionMethods[U, C[_]](q: Query[_,U, C]): StreamingQueryActionExtensionMethods[C[U], U] =
createStreamingQueryActionExtensionMethods[C[U], U](queryCompiler.run(q.toNode).tree, ())
implicit def runnableCompiledQueryActionExtensionMethods[RU](c: RunnableCompiled[_, RU]): QueryActionExtensionMethods[RU, NoStream] =
createQueryActionExtensionMethods[RU, NoStream](c.compiledQuery, c.param)
implicit def streamableCompiledQueryActionExtensionMethods[RU, EU](c: StreamableCompiled[_, RU, EU]): StreamingQueryActionExtensionMethods[RU, EU] =
createStreamingQueryActionExtensionMethods[RU, EU](c.compiledQuery, c.param)
// Applying a CompiledFunction always results in only a RunnableCompiled, not a StreamableCompiled, so we need this:
implicit def streamableAppliedCompiledFunctionActionExtensionMethods[R, RU, EU, C[_]](c: AppliedCompiledFunction[_, Query[R, EU, C], RU]): StreamingQueryActionExtensionMethods[RU, EU] =
createStreamingQueryActionExtensionMethods[RU, EU](c.compiledQuery, c.param)
// This only works on Scala 2.11 due to SI-3346:
implicit def recordQueryActionExtensionMethods[M, R](q: M)(implicit shape: Shape[_ <: FlatShapeLevel, M, R, _]): QueryActionExtensionMethods[R, NoStream] =
createQueryActionExtensionMethods[R, NoStream](queryCompiler.run(shape.toNode(q)).tree, ())
}

如此多的implicit转换,可以将Query和CompiledQuery转换成各种QueryActionExtensionMethods。那么我们再来看result的源码,看看它是不是在某个QueryActionExtensionMethods类里:

1
2
3
4
class StreamingQueryActionExtensionMethodsImpl[R, T](tree: Node, param: Any) extends QueryActionExtensionMethodsImpl[R, Streaming[T]](tree, param) with super.StreamingQueryActionExtensionMethodsImpl[R, T] {
override def result: StreamingDriverAction[R, T, Effect.Read] = super.result.asInstanceOf[StreamingDriverAction[R, T, Effect.Read]]
// ...
}

果然!result方法存在于这个QueryActionExtensionMethods类里,而且Query可以通过上述API隐式转换为QueryActionExtensionMethods。这个类好混乱,继承了两个trait,还没注释(这一点最蛋疼了,直接看源码估计无解)。再往它的父类找:

1
2
3
4
5
6
7
8
trait QueryActionExtensionMethodsImpl[R, S <: NoStream] {
/** An Action that runs this query. */
def result: DriverAction[R, S, Effect.Read]
}
trait StreamingQueryActionExtensionMethodsImpl[R, T] extends QueryActionExtensionMethodsImpl[R, Streaming[T]] {
def result: StreamingDriverAction[R, T, Effect.Read]
}

它们是最基本的QueryActionExtensionMethods,即查询操作。

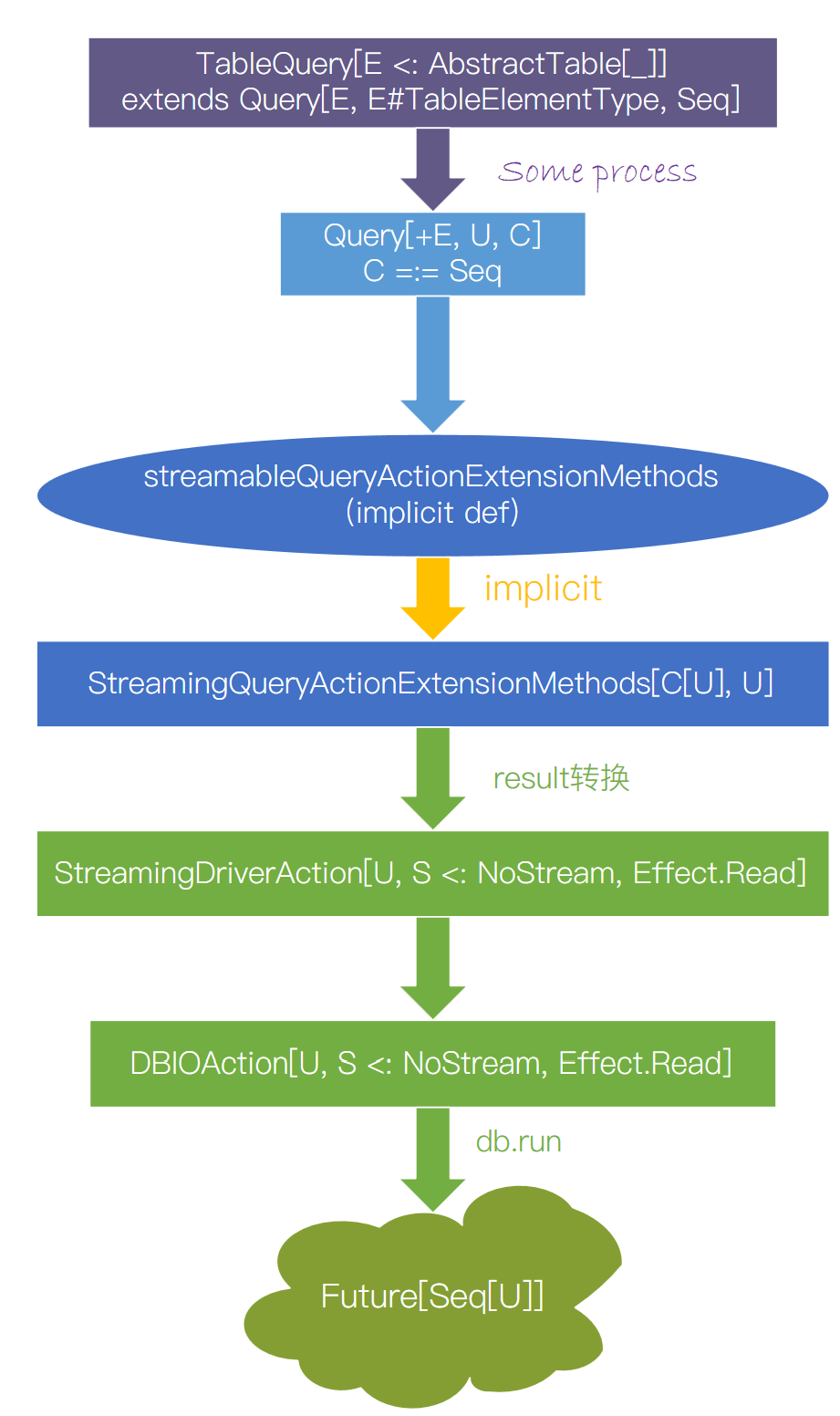

到此为止,我们终于搞明白了一个数据库查询过程中从Query经过implicit的result转换成DBIOAction,再进行db.run得到Future异步结果的类型转换的过程。我做了一张图来总结这个过程:

Slick Query Type Process
